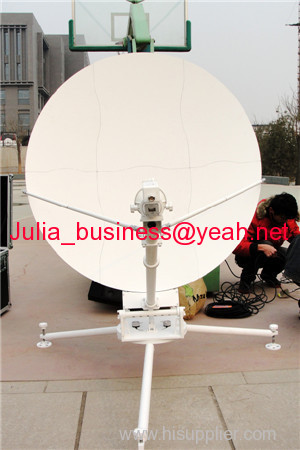

1.8M Portable Manual Carbon Fiber Antenna

Characteristics:

ü Carbon fiber reflector, high strength, light weight;

ü Design compact and strong, high cost performance;

ü Over 90% of the main support system in carbon material,making more stable, weight much lighter, strength much higher,more advantageous to the portable usage;

ü Good cross polarization, low sidelobe, high efficiency;

ü Dismantling convenient & quick, adjustment convenient ,finishing installation in twenty minutes (without tool);

ü Of 4 Pieces panel, narrow&light in collection;

ü Adopt the "three" measures, modern production process, meet various field work environment;

Parts:

Feed and antenna subsystem, single offset antenna, large diameter corrugated horn, turntable subsystem, azimuth and pitching turntable, special packing;

Accessories:

User manual,equipment integrated box;

Option:

soft waveguide,LNB, BUC, modem ;

PERFORMANCE SPECIFICATIONS

Type	NS-FM-180
Operating Frequency,GHz	C-Band		Ku-Band
	Receive	Transmit	Receive	Transmit
	3.625~4.2	5.85~6.425	10.95~12.75	13.75~14.5
Gain, Mid-Band, dBi	35.3	39.5	44.6	46.3
XPD(on axis),dB -1 dB	≥35 ≥30	≥35 ≥30	≥35 ≥30	≥35 ≥30
VSWR	1.25:1	1.25:1	1.25:1	1.25:1
-3dB Beamwidth, Mid-Band	2.87°	1.93°	0.92°	0.78°
Tx. Power Capability, KW	5kw/port		1kw/port
Feed interface	CPR-229G	CPR-159G/137G	WR-75	WR-75
Feed Insertion Loss,dB	0.15	0.17	0.35	0.35
Isolation, Tx to Rx, dB	85		85
First Sidelobe,dB 90% Peaks under Following Envelop ,dBi	-14 29-25㏒θ(1°≤θ＜20°)		-14 29-25㏒θ(1°≤θ＜20°)

MECHANICAL SPECIFICATIONS

Antenna Diameter	1.8 m
Antenna Type	Offset
Refletcor material	Aluminum/Carbon
Weight	70 kg(N)/136 kg(G)
Packing Size	1040/510/1010mm 1330/640/520mm
Azimuth Travel	0°~360°
Elevation Travel	8°~ 90°
Polarization Travel	±90°
Drive Mode	Manual
Dish Pieces	4 pics
